Broadcasting and Recording Microphones



    back

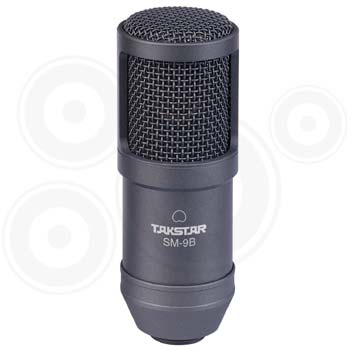

  TAKSTAR SM-9B TAKSTAR SM-9B
Broadcasting and Recording Microphone

download pdf
  download zip
print

TAKSTAR SM-9B professional recording condenser microphone with its 3-micron-thick vapor-deposited gold diaphragm and unique appearance is most suitable for broadcasting, studio recording, on stage shows and musical instruments recording.

The Zinc-die casting housing is spray-painted. Its standard XLR (F) connector can match a variety of audio equipment. The standard package contains a cardboard box with impactproof sponge, windscreen - 1pc and H-200 swivel mount - 1pc.

Element: Pressure Gradient Transducer

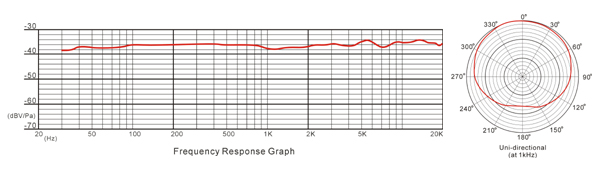

Polar Pattern: Uni-directional
Frequency Response: 30Hz-18kHz
Sensitivity: -38dB±2dB (0dB=1V/Pa at 1kHz)
Output Impedance: 100O±30% (at 1kHz)
Load Impedance: =1000O
Self Noise: 22dB A (IEC 581-5)
Max. Input SPL: 134dB (at 1kHz =1% T.H.D)
S/N Ratio: 76dB
Phantom Power Requirement: 48V DC Phantom
Body Dimensions:Ø44x120mm
